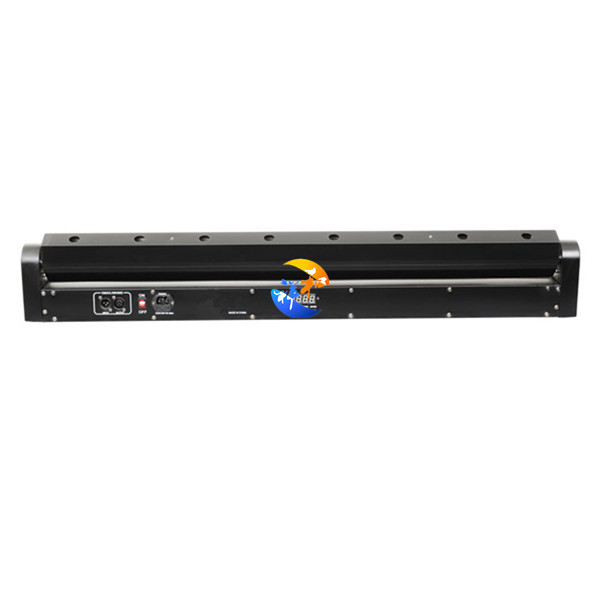

8 heads bar laser light
1.8 eyes horizontal and vertical scanning
2. Blue 150nm red 300mw Green 80mw
3.200m length in the air
4.30kpps scanning speed
Use instructions:
1. The power adapter electric socket on the side of laser light, put " 7"(strobeflash, on and off switch) button in the middle of the gear moving,the product is in working mode.
2. Press the button of "4"(music and auto ), get in music controlled mode, the music more loudly, the laser light more brightness. Press the button of "4"(music and auto ) again, music controlled mode stop, into auto mode.
3. Strobeflash controlled: Put "7" button on the left gear moving, the storbeflash is working, it's speed can be controlled by rotate the button of "6"(strobe falsh controlled).
4. When the product is on working, rotate the button of "3"(motor controlled) to adjust the speed of change the patterns.
Application: Home party, KTV, Disco, nightclub, bar, marketplace, wedding, karaoke, gardon, plaza
