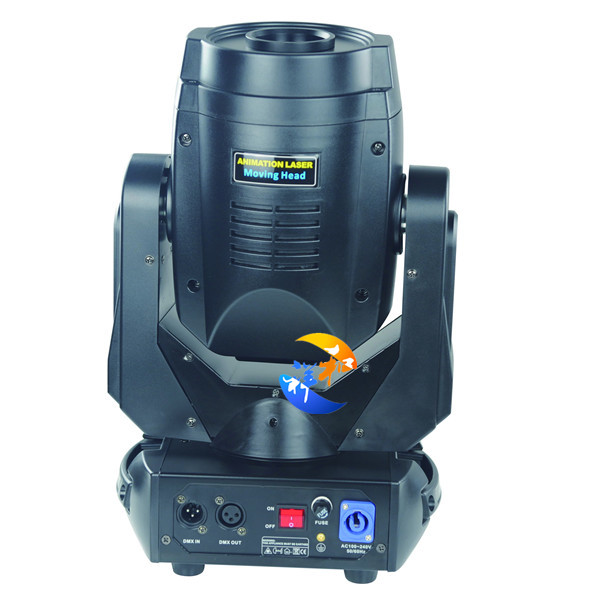

4W moving head laser light
Rated Voltage: AC100~240V 50/60Hz
Rated Power: <1000W
Scanner: 30K high speed module scanner (Can be upgraded to 60K),Scan angle: ±30°;
Input signal: ±5V; Linearity distortion<2%)
Motor: 2Pcs
Pan/Tilt: X axis 540° ,Y axis 270°
Modulation: analog
Beam diameter and Divergence: 5mm; <2mrad
Control Modes: Music four mode with black out)/Automatic/Master-Slave/DMX512(25CH)
Demonstration effect: Built-in 144 pattern
DMX effect: Single pattern modes,and with the function of unique blanking,strobing, rotating, movement, billowing, zoom,drawing,speed and color etc.
Security Intelligent function: no signal no emit,Key power,signal is changed automatically(PC to DMX or DMX to PC),Quick Channel, one of the product channels, SD card update online.
Operating requirement: dry, less dust, 10~40ºC(environmental temperature),will reduce the attenuation of the diode and extend the life of the light.
Application: Disco, Clubs, KTV, Pub, Vocal concert,Television Station,stadium,Advertising promotion etc.
Size: 34.5x23x48cm
N.W/G.W: 8.5/9.5Kg
